Automatic Essential Oil Filling And Packaging Production Line
| Item | Details |
|---|---|
| Product Name | Small-Dose Vial Liquid Filling Machine |
| Number of Filling Heads | 2 heads (more heads can be customized) |
| Filling Volume | 1-10ml, 10-100ml, 100-500ml, more specifications available for customization |
| Filling Method | Peristaltic pump for regular liquids, servo piston for viscous liquids |
| Filling Speed | 1500-3000 bottles/hour (customizable) |
| Filling Accuracy | 99% (high precision) |
| Auxiliary Equipment | Air compressor (4.5KW or above) |
| Total Power of Production Line | 2KW (excluding conveyor motor) |
| Control System | PLC + HMI, one-key operation |
Descriptions of Automatic Essential Oil Filling and Packaging Machine
Product Overview
Our Automatic Essential Oil Filling and Packaging Production Line is a high-end filling solution exclusively designed for small-volume containers such as vials and essential oil bottles. This integrated production line combines automatic bottle feeding, precise filling, and optional capping functions, driven by high-precision peristaltic pumps to ensure zero error in each drop of essential oil filling. It is the core equipment to improve production capacity and reduce material loss for both large-scale industrial production and high-precision essential oil deep processing.
Core Advantages of Our Automatic Essential Oil Filling and Packaging Production Line
1. Peristaltic Pump Drive, Precision & No Residue
The machine adopts food-grade peristaltic pump filling principle, with no contact between the pump and raw materials, completely avoiding essential oil contamination and residue. For small-volume specifications ranging from 0.5ml to 50ml, its filling accuracy reaches ±1%, fully meeting the high-precision filling requirements of cosmetic and pharmaceutical-grade vials.
2. Fully Automatic Process, Double Production Capacity
Integrated with automatic bottle sorting, conveying, filling and optional automatic capping, the whole line runs unattended. Compared with manual filling, its efficiency is increased by 5-10 times, significantly reducing labor costs and helping you easily handle large-volume orders.
3. Multi-Specification Compatible, Flexible Production
Only a few parameter adjustments or simple fixture replacements are needed to switch bottle types, compatible with vials, essential oil bottles, ampoules and other containers. One machine for multiple uses, perfectly adapting to your multi-category and multi-specification production plans.
4. Hygienic Design, Meets GMP Standards
The material contact parts are made of 304/316 stainless steel and medical-grade materials, corrosion-resistant and easy to clean, fully complying with GMP hygiene and safety standards for food, pharmaceutical and cosmetic industries, ensuring safe and reliable production.
Applicable Industries of our Automatic Essential Oil Filling and Packaging Production Line
• Industries: Essential oil manufacturing, high-end cosmetics, biomedicine, fine chemicals
• Products: Single essential oil, compound essential oil, facial serum, vial powder injections, ampoule liquid medicine
Why choose DERONES?
We provide one-stop service including equipment selection, customization, installation, commissioning and after-sales maintenance. Our professional technical team can customize the most suitable filling solution according to your production capacity and specification needs. With stable performance, reliable quality and comprehensive after-sales support, our automatic essential oil filling line is your optimal choice for upgrading production lines. Contact us now for a customized quote!
Production Process Of Essential Oil Filling And Capping Machine
Bottle Unscrambler

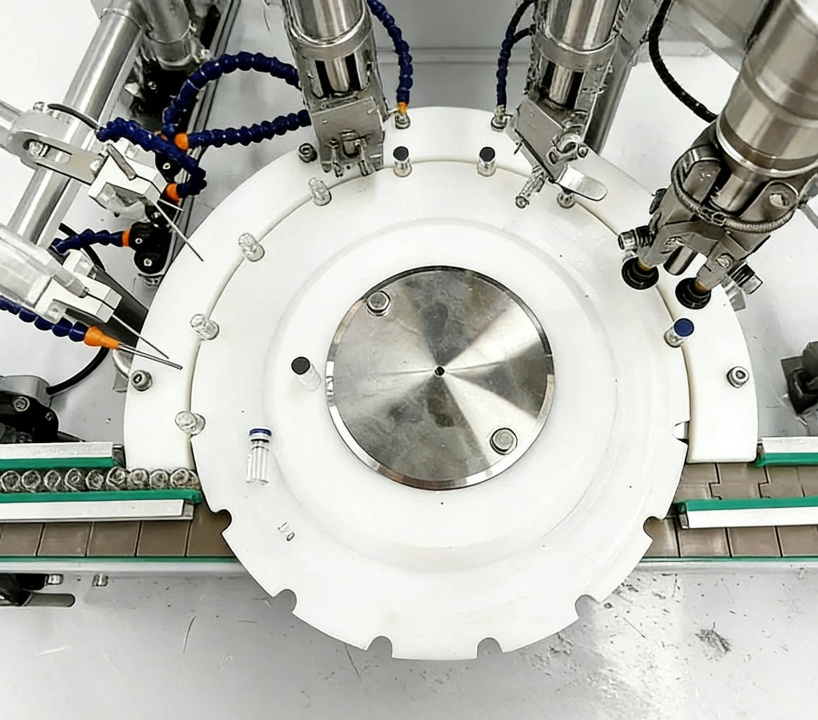

For the bottle unscrambler, bottles are manually placed onto the rotating circular turntable. As the turntable rotates, bottles are continuously and orderly fed onto the conveyor belt, then enter the filling machine for filling.
As an indispensable part of packaging machinery, it is convenient to use and simple to operate.

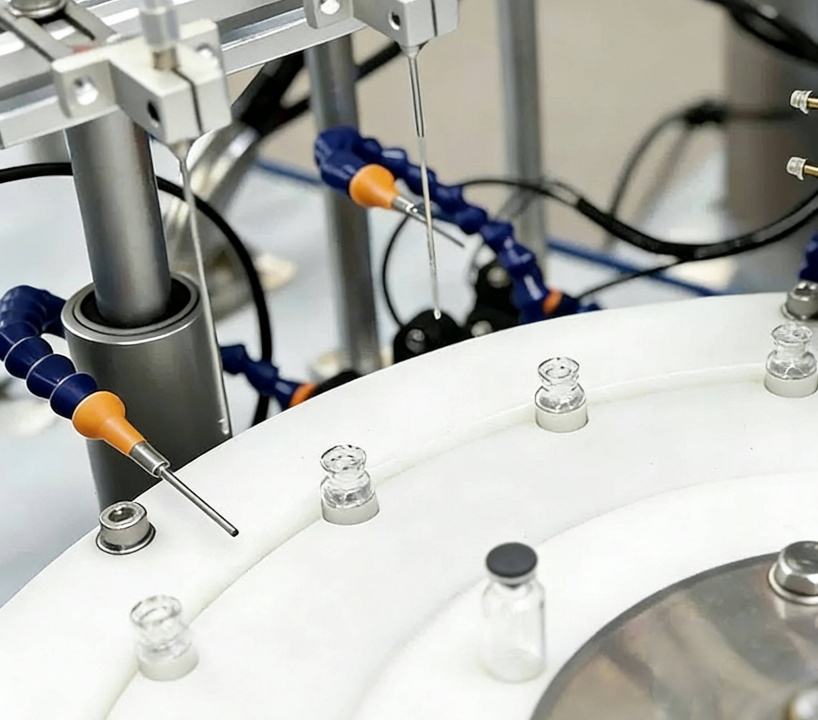

Filling Unit
The main filling unit adopts either peristaltic pump filling or piston filling, with different filling methods selected according to the properties of the liquid. It is suitable for filling essential oils, oral liquids, viscous liquids, or regular liquids.

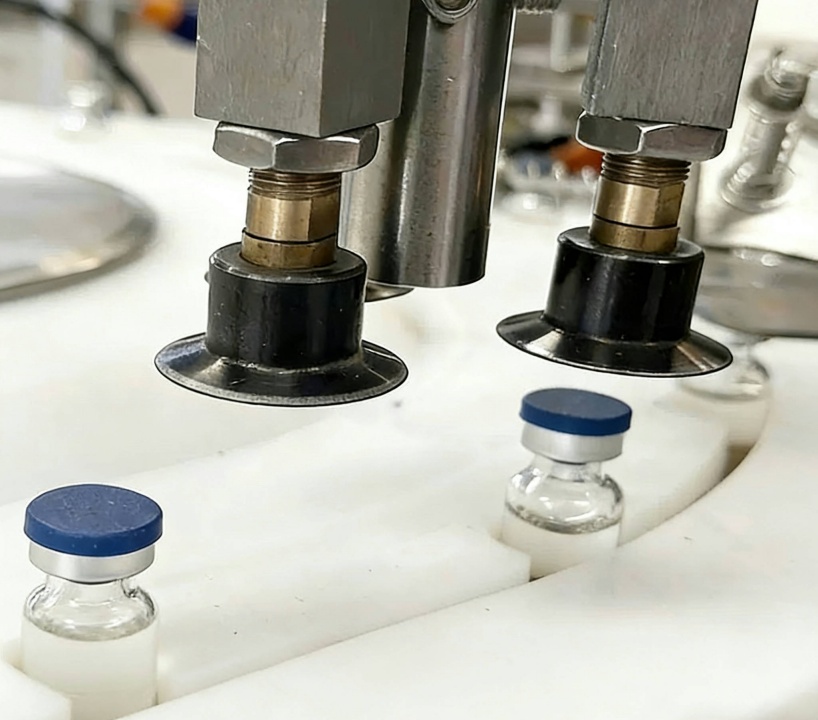

Capping Unit
A variety of cap specifications are available, with options for press capping, screw capping, or crimp capping. The entire equipment is fully automated, convenient, fast, and efficient!

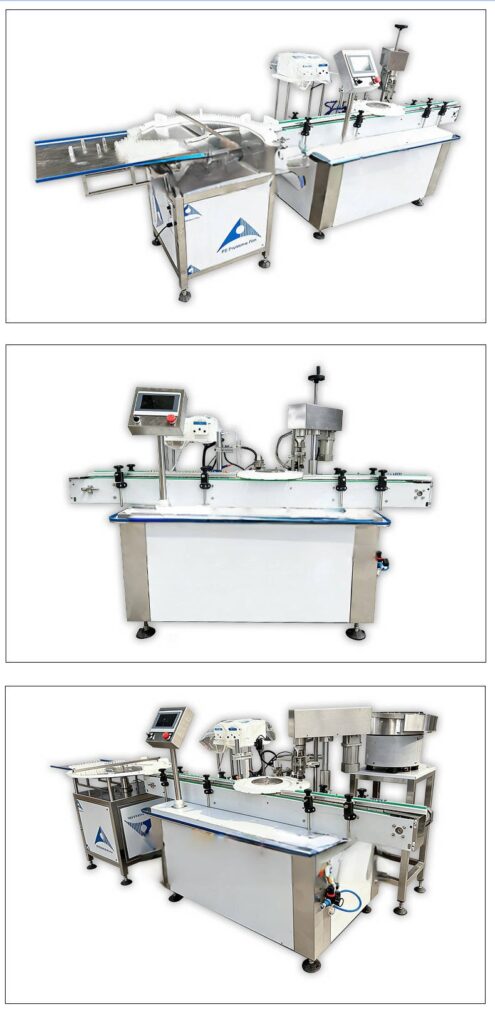

Real Shot Of Our Production Line

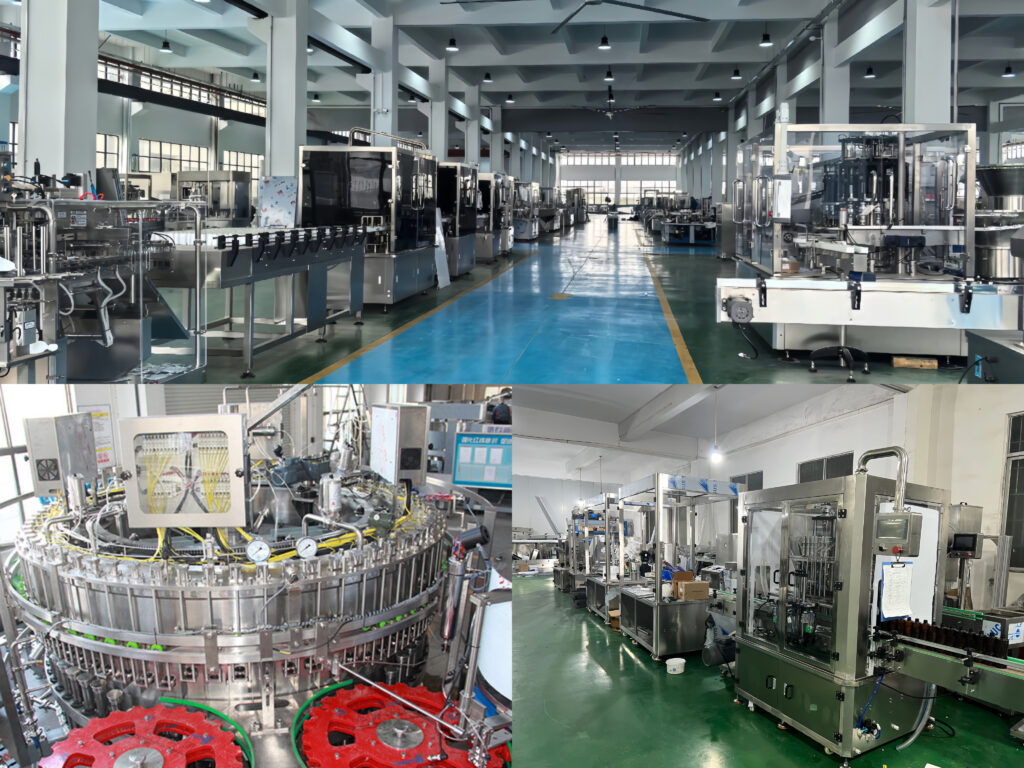

Workshop Display
DERONES is located in Suzhou, which is a famous modern and awarded the title of a United Nations Livable city. It is a filling equipment manufacturer integrating scientific research, production and sales.
Our company mainly provides complete sets of filling equipment for industries such as oral liquid, pharmaceuticals, powders, small-dose packaging, condiments, fruit juices, beverages, mineral water, purified water and edible oil. Its main products include pharmaceutical filling machines, hose (composite tube; plastic tube, aluminum tube) filling and sealing machines, sauce/beverage/wine filling machines, automatic filling production lines, labeling machines, stainless steel storage tanks, water treatment equipment, etc.
Our products can be used in a complete production line or operated as a single machine, featuring simple operation and accurate quantitative measurement. Our machines are sold to all major cities and regions across China and abroad, and have been well received by customers.
We always adhere to the philosophy of “Quality First, Reputation Supreme, Win-Win Cooperation and Common Development”, committed to manufacturing high-quality filling equipment, solving problems for old customers in a timely and effective manner, and providing installation and commissioning services for new customers.
If you are interested in our products, please feel free to leave your contact information.
