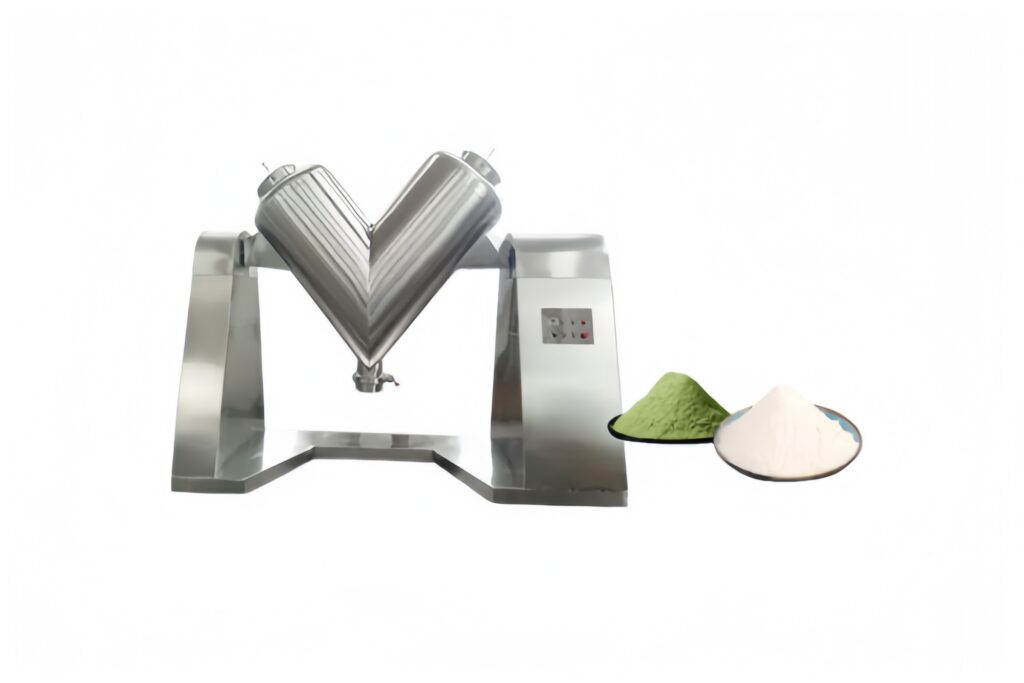

Working Principle of V-type Powder Mixer
The V-type mixer consists of two asymmetric cylinders of different heights. The transmission system drives the cylinder to rotate 360° continuously:
1. During rotation, materials gather and disperse repeatedly in the two asymmetric cylinders. The height difference creates a potential energy difference, promoting lateral material exchange.
2. In each full rotation, about 25% of the material flows back and forth between the two cylinders, accompanied by radial flow, achieving alternate decomposition and recombination in both horizontal and radial directions.
3. The mixing process is gentle, without mechanical extrusion or strong friction, preserving the integrity of material particles. Full and uniform mixing of two or more powders/granules can be completed within 5–15 minutes.
- Core Product Features
1. Excellent Mixing Performance
• Asymmetric V-shaped cylinder design ensures no mixing dead corners and high uniformity, with efficiency much higher than traditional mixers.
• Gentle mixing action does not damage particles, suitable for materials requiring high integrity such as nuts and grains.
- Hygienic and Reliable
• All parts in contact with materials and the machine shell are made of 304 stainless steel with polished inner and outer walls, smooth and easy to clean, avoiding cross-contamination.
• Inlet equipped with food-grade silicone gasket; outlet adopts stainless steel sealed butterfly valve, enabling dust-free operation.
• Complies with GMP standards, suitable for food, pharmaceutical and other high-hygiene industries.
- Easy and Intelligent Operation
• Equipped with speed-adjustable motor and digital timer, allowing flexible setting of rotation speed and mixing time according to material characteristics.
• Button control with clear interface, easy for operators to master quickly.
• Supports manual or vacuum feeding; smooth discharging with no residue.
- Stable and Durable Structure
• Drive shaft adopts concentric welding and reinforced steel plate, ensuring stable rotation without shaking or eccentricity, low noise.
• Frame made of welded channel steel covered with stainless steel, compact structure, small footprint, attractive appearance.
• Excellent anti-rust and anti-corrosion performance, long service life, low maintenance requirement.
- Complete Models & Customization
• Full series from 2L laboratory type to 3000L industrial type, customizable with single-arm or double-arm structure.
• Over 10 years of manufacturing experience; custom specifications and supporting equipment such as vacuum conveyors available upon request.
- Applicable Industries and Materials
Applicable Industries: Pharmaceutical, food, chemical, feed, ceramics, metallurgy, electronics and other industries.
Applicable Materials:
• Food: grains, nuts, spices, seasonings, flour, coffee powder, sugar, food additives, etc.
• Pharmaceutical: herbal powder/granules, capsule granules, pharmaceutical excipients, etc.
• Chemical: fertilizers, plastic granules, color masterbatch, chemical raw materials, iron powder, copper powder, etc.
• Feed: poultry feed, fish feed, wildlife feed, etc.
Product Structure
The machine mainly consists of four parts: mixing cylinder, frame, transmission system and electrical control system.
1. Mixing Cylinder: Asymmetric V-shaped stainless steel cylinder with top inlet and bottom outlet, polished inside and outside.
2. Transmission System: Motor, reducer, sprocket & chain, bearings and drive shaft for smooth rotation.
3. Frame: Welded channel steel with stainless steel cover, firm structure.
4. Electrical Control System: Start/stop button, speed governor, digital time relay for precise control.
| Model | Total Volume(L) | Recommended Working Volume(L) | Motor Power(Kw) | Mixing Speed(r/min) | Recommended Loading(Kg) | Overall Dimensions(mm) |
|---|---|---|---|---|---|---|
| VH-2 | 2 | 0.6 | 0.25 | 24 | 1 | 450×230×450 |
| VH-5 | 5 | 2 | 0.55 | 24 | 2.5 | 560×360×560 |
| VH-8 | 8 | 3.2 | 0.55 | 24 | 4 | 660×360×630 |
| VH-14 | 14 | 5.6 | 0.55 | 20 | 7 | 925×360×800 |
| VH-20 | 20 | 8 | 0.55 | 20 | 10 | 1195×350×885 |
| VH-30 | 30 | 12 | 0.75 | 20 | 15 | 1170×370×1045 |
| VH-50 | 50 | 20 | 0.75 | 20 | 25 | 1350×460×1160 |
| VH-100 | 100 | 40 | 1.1 | 15 | 50 | 1580×650×1460 |
| VH-200 | 200 | 80 | 2.2 | 15 | 100 | 1750×690×1600 |
| VH-300 | 300 | 120 | 2.2 | 15 | 150 | 2015×720×1735 |
| VH-500 | 500 | 200 | 2.2 | 13 | 250 | 2450×980×2050 |
| VH-1000 | 1000 | 400 | 4 | 10 | 500 | 3050×1200×2580 |
| VH-2000 | 2000 | 800 | 7.5 | 9 | 1000 | 3750×1500×3000 |
What is this V-type mixer designed for?
A: The VH series V-type dry powder mixer is a highly efficient asymmetric powder mixing machine, specially developed for pharmaceutical, food, chemical, feed, metallurgy and other industries. It is ideal for uniform mixing of dry powder and granular materials, and widely used for front-end batching in filling production lines, laboratory R&D and small-batch production.
What are the material and structural advantages?
A: All parts in contact with materials are made of food-grade 304 stainless steel. Through 360° rotating mixing of the asymmetric V-shaped cylinder, it achieves high mixing uniformity of over 99% with no dead corners and no material residue, fully complying with GMP clean production standards.
What convenience does it bring to operation and production?
A: It supports manual or vacuum feeding, features easy operation and simple maintenance. With stable performance and a compact structure, it can meet various application demands from laboratory tests to industrial mass production.
