Small Single Head Can Seaming Machine
| Product Name | Automatic Can Seamer |
|---|---|
| Power | 370W |
| Sealing Range | Dia. Range: 39-150mm |
| Height Range | 39-200mm |
| Speed | 25 Cans/Min |
| Machine Size | 300×415×705mm |
| Carton Size | 390×640×780mm |
| Net Weight | 65kg |
| Key Features | Auto interval setting,one-man operation,high automation |
Our single-head automatic seaming machine (can seamer) is a high-efficiency, compact sealing solution designed for small to medium production lines. Engineered with premium die-steel seaming rollers and a reinforced drive shaft, it delivers airtight, leak-proof seals for various cans, jars, and tins (diameter 39-150mm, height 39-200mm). With a 370W motor and 25 cans/min sealing speed, it ensures stable, fast operation while saving labor costs. The adjustable lifting rod and computerized control panel enable easy height adjustment and automated operation—simply place the can, and the machine handles the rest. Its baking finish, rust-proof plated components, and durable structure guarantee long service life and low maintenance. Ideal for food, beverage, and packaging industries, this can seamer is perfect for sealing plastic cans, tin cans, and glass jars, meeting diverse production needs with high automation and reliability.
How Does The Can Seaming Machine Work?
This single-head can seaming machine achieves reliable, airtight sealing through a precise three-step mechanical process.
- Positioning & Lifting

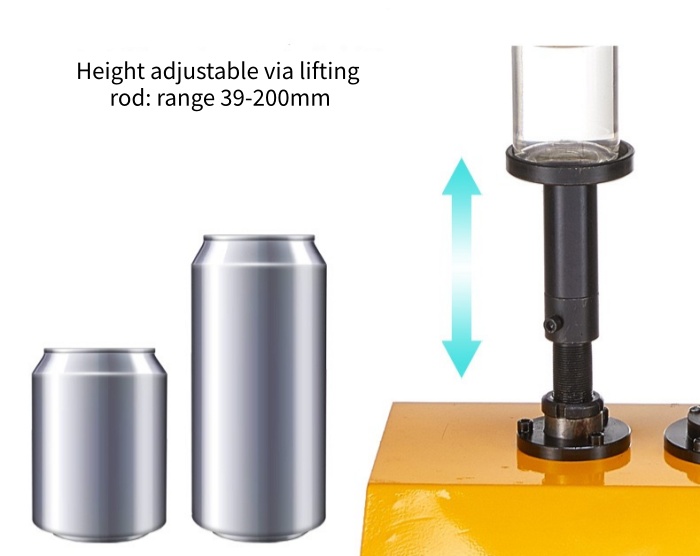

The can is placed on the lifting rod and positioned automatically. The machine adjusts the height (39-200mm) via the stand pole to fit different can sizes. The upper mould presses down to secure the can, ensuring stable alignment during operation.
- Pre-seaming (First Rolling)

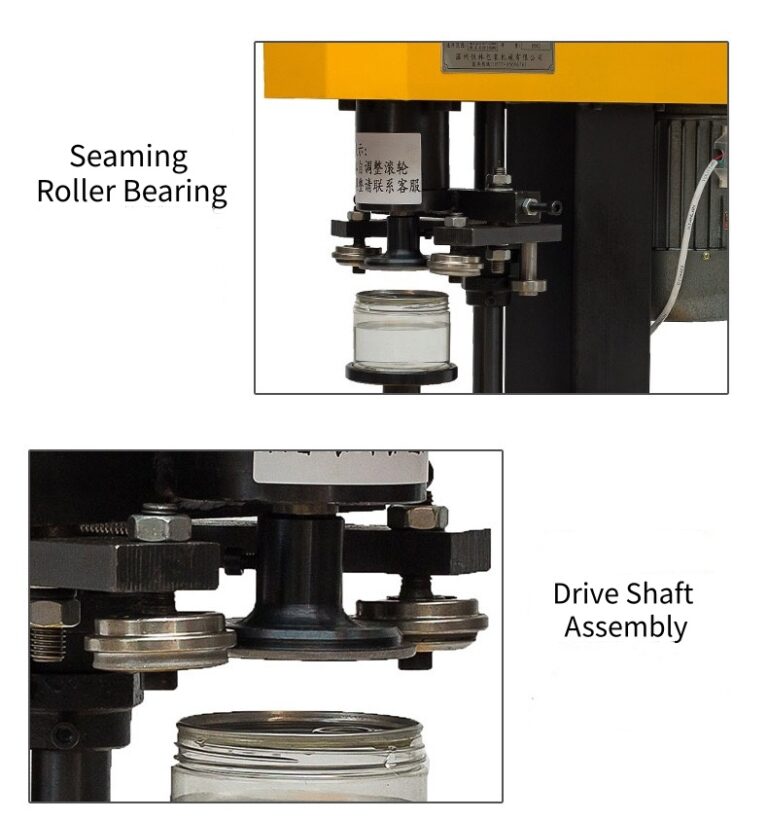

The seaming wheel (equipped with high-hardness die-steel rollers) makes initial contact with the can’s edge. It bends the can lid and body flange together, forming a tight interlock. This step creates the basic seam structure, preparing for final sealing.
- Final Seaming (Second Rolling)
The seaming wheel applies continuous pressure to curl and compress the locked layers. The reinforced drive shaft ensures smooth, high-speed rotation (up to 25 cans/min). This process fuses the lid and body into a single, leak-proof structure, completing the airtight seal.
- Core Mechanism
The machine uses a motor-driven drive shaft to power the rotating seaming head. Its computerized control panel sets intervals, enabling fully automated operation with minimal human intervention. The combination of mechanical rolling and precision engineering ensures consistent, durable seals for food, beverage, and packaging applications
| Product Name | Automatic Can Seamer |
|---|---|
| Power | 370W |
| Sealing Range | Dia. Range: 39-150mm |
| Height Range | 39-200mm |
| Speed | 25 Cans/Min |
| Machine Size | 300×415×705mm |
| Carton Size | 390×640×780mm |
| Net Weight | 65kg |
| Key Features | Auto interval setting,one-man operation,high automation |
