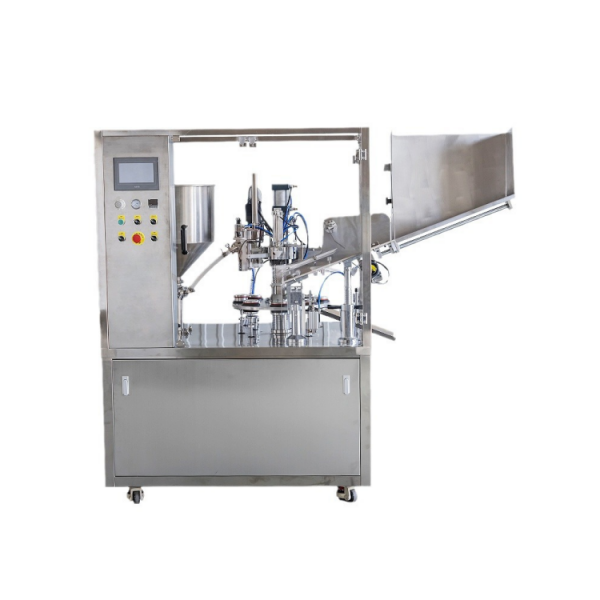

Plastic Tube Filling & Sealing Machine

ItemSpecification
Power Supply220V 50Hz / 380V optional
Total Power6kW
Sealing Head Power3.3kW
Chiller Unit1.0kW
Air Supply Pressure0.6-0.8MPa
Working Air Pressure0.5MPa
Production Capacity20-40 tubes/minute
Filling Accuracy±2%
Overall Dimensions200010001900mm
Machine Weight500kg
Material in Contact with ProductSUS304 stainless steel
Filling Volume10-300ML (customizable as per client requirements)
Suitable Hose Diameter12-50mm
Suitable Hose Length70-200mm

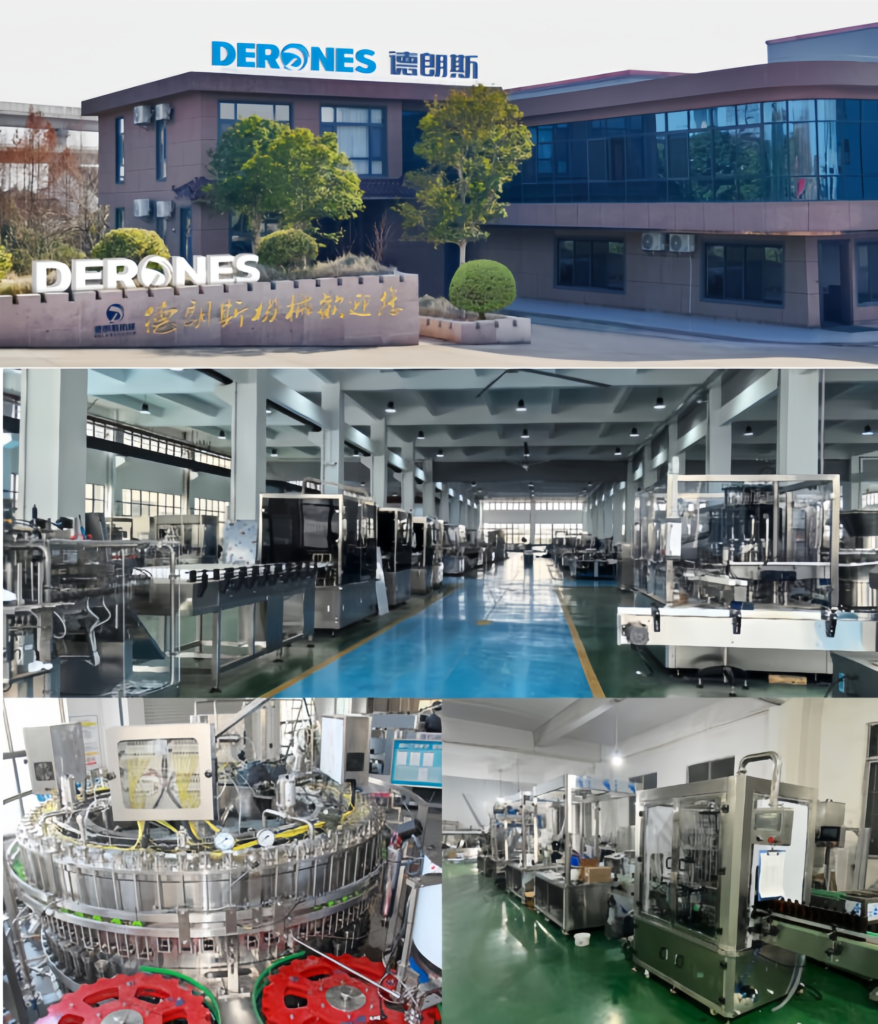

derones filling and packaging machine

DERONES is located in Suzhou, which is a famous modern and awarded the title of a United Nations Livable city. It is a filling equipment manufacturer integrating scientific research, production and sales.

Our company mainly provides complete sets of filling equipment for industries such as oral liquid, pharmaceuticals, powders, small-dose packaging, condiments, fruit juices, beverages, mineral water, purified water and edible oil. Its main products include pharmaceutical filling machines, hose (composite tube; plastic tube, aluminum tube) filling and sealing machines, sauce/beverage/wine filling machines, automatic filling production lines, labeling machines, stainless steel storage tanks, water treatment equipment, etc.

Our products can be used in a complete production line or operated as a single machine, featuring simple operation and accurate quantitative measurement. Our machines are sold to all major cities and regions across China and abroad, and have been well received by customers.

We always adhere to the philosophy of “Quality First, Reputation Supreme, Win-Win Cooperation and Common Development”, committed to manufacturing high-quality filling equipment, solving problems for old customers in a timely and effective manner, and providing installation and commissioning services for new customers.

If you are interested in our products, please feel free to leave your contact information.

ItemSpecification
Power Supply220V 50Hz / 380V optional
Total Power6kW
Sealing Head Power3.3kW
Chiller Unit1.0kW
Air Supply Pressure0.6-0.8MPa
Working Air Pressure0.5MPa
Production Capacity20-40 tubes/minute
Filling Accuracy±2%
Overall Dimensions200010001900mm
Machine Weight500kg
Material in Contact with ProductSUS304 stainless steel
Filling Volume10-300ML (customizable as per client requirements)
Suitable Hose Diameter12-50mm
Suitable Hose Length70-200mm
